About Oracle JDBC drivers

Oracle JDBC drivers can be grouped into two main categories with the following attributes:

Java-based drivers (thin client / Type 4 driver)
- implemented entirely in Java
- highly portable
- downloadable from the server system to a web browser
- connect using the TCP/IP protocol
- only option for applets (due to security restrictions)
OCI-based drivers (Type 2 driver)
- implemented using native method libraries (OCI DLLs)
- OCI libraries must be available on the client system
- cannot be downloaded to a browser
- can connect using any Net8 protocol
- high performance

The following figure illustrates how JDBC components and the driver run in the same memory space as an applet.

figure described in text

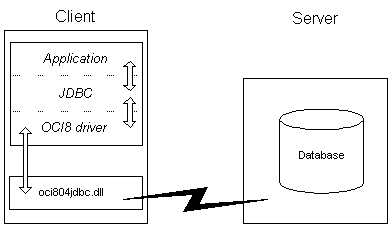

The following figure illustrates how the Oracle JDBC OCI drivers run in a separate memory space from your Java application. These JDBC drivers make OCI calls to a separately loaded file.

figure described in text

Note: Don't confuse the terms JDBC and JDBC drivers. All Java applications, no matter how they are developed or where they execute, ultimately use the JDBC-level drivers to connect to Oracle. However, coding using the pure JDBC API is low-level development, akin to using the Oracle Call Interface (OCI) to develop a database application. Like the OCI, the JDBC API provides a very powerful, but also very code-intensive, way of developing an application.
